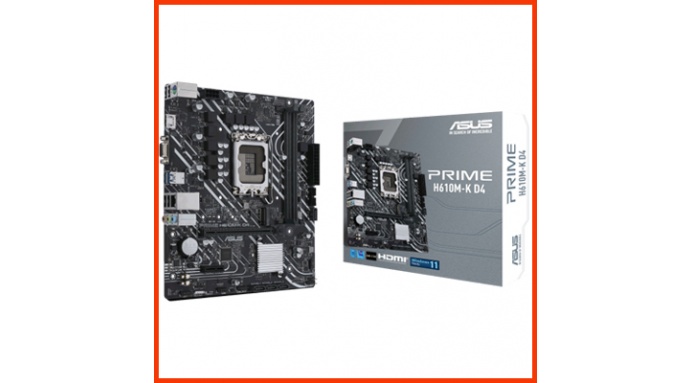

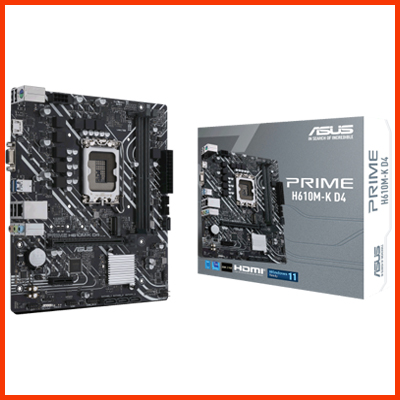

Mainboard ASUS PRIME H610M-K D4

• Model    H610M-K D4
• CPU hỗ trợ    Intel
• Chipset    H610
• RAM hỗ trợ    2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Khe cắm mở rộng

Intel® 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot

• Ổ cứng hỗ trợ    Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

• Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

• Power related

1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

• Storage related

1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

• USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

• Miscellaneous

1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

• Cổng kết nối (Back Panel)

2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

• LAN / Wireless

Kích cỡ    mATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
